Seeking Advice on Indoor Drone Navigation and Obstacle Detection

Hi,

I’m working on a drone project using the ANAFI Ai, and I’d love to get your advice on the best approach for indoor QR code navigation.

Scenario:

  • The drone always enters the room from a fixed position.
  • There are 3 QR codes placed on the walls (the first on the left, then the others on the right).

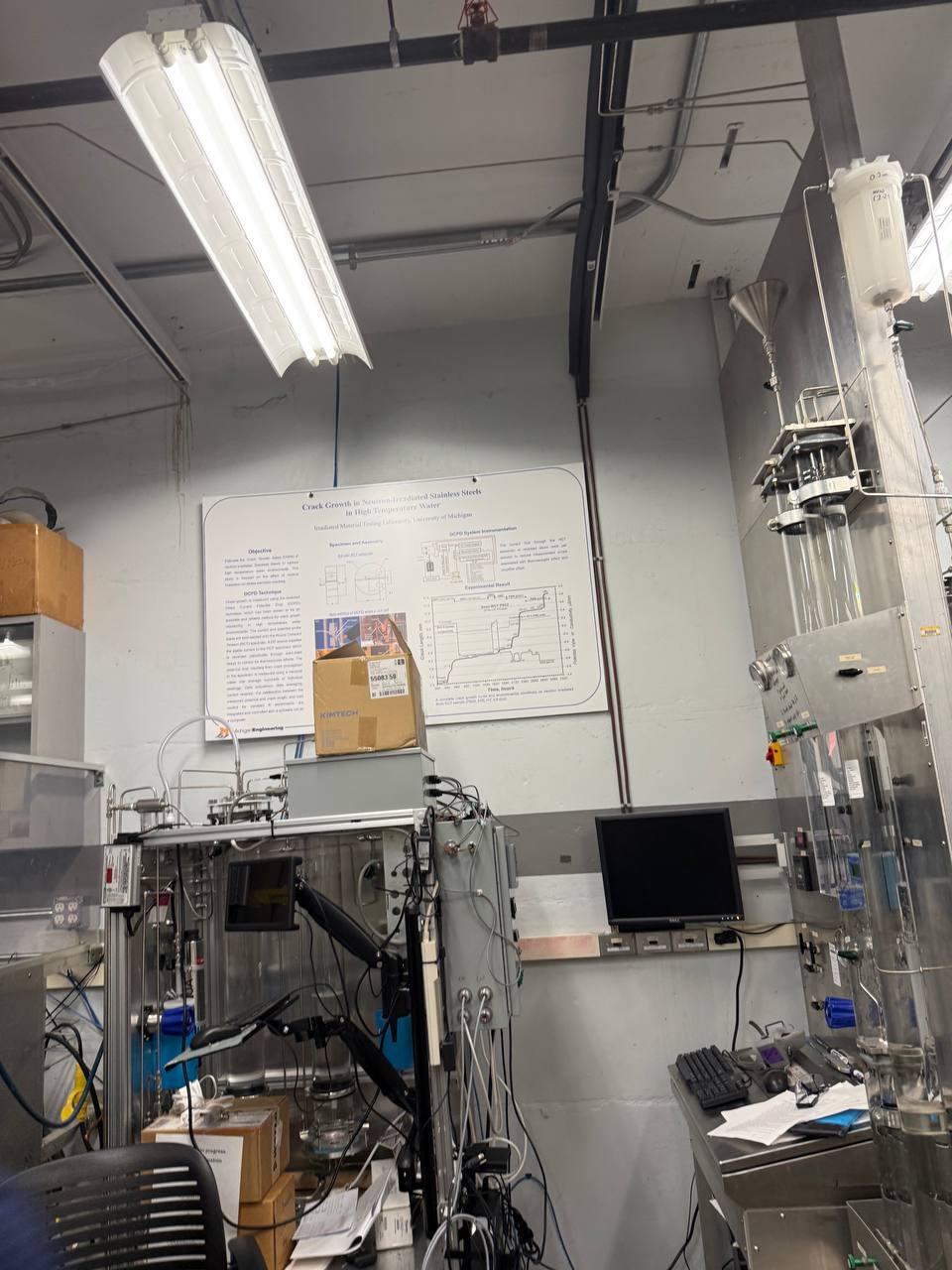

  • The environment is complex and has indoor obstacles (please see attached photo).
  • Goal:
    1. In the training phase, the drone explores the room, finds all 3 QRs, and memorizes their positions.
    2. In the test phase, it should go directly to those memorized positions and scan the QR codes — without exploring again.

Questions:

  1. What navigation strategy would you recommend?
    Should I use SLAM, dead reckoning, visual marker tracking, or another approach?
  2. What are some reliable ways to implement indoor obstacle detection and avoidance?
    (Preferably with only the drone’s camera feed — no LIDAR or GPS.)

If you’ve worked on something similar or have any suggestions, I’d really appreciate your input.

Hi all,

I wanted to follow up on my recent post regarding indoor navigation with the ANAFI Ai. I’ve now implemented a basic obstacle avoidance system using the front-facing camera and OpenCV. The logic is simple:

  • The video feed is split into left, center, and right zones.
  • I apply Canny edge detection and contour analysis to detect large objects in each zone.
  • If an obstacle is detected in the center zone, the drone checks the left and right zones:
    • If the left is clear, it sidesteps left using moveBy().
    • If the right is clear, it sidesteps right.
    • If both sides are blocked, it ascends slightly to avoid the obstacle vertically.
  • If no obstacle is detected, the drone moves forward.

This was tested indoors in a static environment. I know this is a very lightweight approach compared to full SLAM or depth-mapping, but I wanted to start simple.

Is this a valid foundation for indoor obstacle avoidance with ANAFI Ai?
Would anyone recommend a better or more robust approach, especially in environments with dynamic or more complex layouts?

Appreciate any feedback or suggestions!

:woman_technologist:

import argparse
import olympe
import os
import re
import sys
import cv2
import time
from olympe.video.pdraw import Pdraw, PdrawState
from olympe.messages.ardrone3.Piloting import TakeOff, moveBy, Landing
from olympe.messages.ardrone3.PilotingState import FlyingStateChanged

DRONE_IP = os.environ.get("DRONE_IP", "192.168.42.1")
DRONE_RTSP_PORT = os.environ.get("DRONE_RTSP_PORT", "554")

# Simple edge-detection based obstacle detection by region
def detect_obstacle_regions(frame):
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    blur = cv2.GaussianBlur(gray, (5, 5), 0)
    edges = cv2.Canny(blur, 50, 150)
    contours, _ = cv2.findContours(edges, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

    height, width = frame.shape[:2]
    left_zone = (0, int(width * 0.3))
    center_zone = (int(width * 0.35), int(width * 0.65))
    right_zone = (int(width * 0.7), width)

    obstacle_left = obstacle_center = obstacle_right = False

    for cnt in contours:
        area = cv2.contourArea(cnt)
        if area > 1500:  # Only large objects are considered obstacles
            x, y, w, h = cv2.boundingRect(cnt)
            cx = x + w // 2
            if left_zone[0] <= cx < left_zone[1]:
                obstacle_left = True
            elif center_zone[0] <= cx < center_zone[1]:
                obstacle_center = True
            elif right_zone[0] <= cx < right_zone[1]:
                obstacle_right = True

    return obstacle_left, obstacle_center, obstacle_right

def main(argv):
    parser = argparse.ArgumentParser(description="Drone Obstacle Avoidance Test")
    parser.add_argument(
        "-u", "--url",
        default=f"rtsp://{DRONE_IP}:{DRONE_RTSP_PORT}/live",
        help="RTSP URL for drone video stream"
    )
    parser.add_argument("-m", "--media-name", default="Front camera")
    args = parser.parse_args(argv)

    # Extract drone IP
    drone_ip = re.search(r"\d+\.\d+\.\d+\.\d+", args.url)
    if not drone_ip:
        print("Invalid drone IP")
        return

    # Connect to drone
    drone = olympe.Drone(drone_ip.group())
    if not drone.connect():
        print("Failed to connect to drone")
        return

    # Start video stream
    pdraw = Pdraw()
    pdraw.play(url=args.url, media_name=args.media_name)
    if not pdraw.wait(PdrawState.Playing, timeout=5):
        print("Failed to start video stream")
        drone.disconnect()
        pdraw.destroy()
        return

    cap = cv2.VideoCapture(args.url, cv2.CAP_FFMPEG)
    cap.set(cv2.CAP_PROP_BUFFERSIZE, 3)

    try:
        # Takeoff and hover
        print("Taking off...")
        if not drone(TakeOff() >> FlyingStateChanged(state="hovering", _timeout=10)).wait().success():
            print("Takeoff failed")
            return
        print("Drone hovering. Obstacle detection running...")

        while True:
            ret, frame = cap.read()
            if not ret:
                print("Failed to grab frame")
                continue

            obs_left, obs_center, obs_right = detect_obstacle_regions(frame)

            if obs_center:
                print("Obstacle ahead!")
                if not obs_left:
                    print("Turning left → moveBy(0, -0.3, 0, 0)")
                    drone(moveBy(0, -0.3, 0, 0) >> FlyingStateChanged(state="hovering", _timeout=5)).wait()
                elif not obs_right:
                    print("Turning right → moveBy(0, 0.3, 0, 0)")
                    drone(moveBy(0, 0.3, 0, 0) >> FlyingStateChanged(state="hovering", _timeout=5)).wait()
                else:
                    print("Surrounded → move up → moveBy(0, 0, -0.3, 0)")
                    drone(moveBy(0, 0, -0.3, 0) >> FlyingStateChanged(state="hovering", _timeout=5)).wait()
            else:
                print("No obstacle → move forward → moveBy(0.3, 0, 0, 0)")
                drone(moveBy(0.3, 0, 0, 0) >> FlyingStateChanged(state="hovering", _timeout=5)).wait()

            # Visualize frame
            cv2.imshow("Drone Feed", frame)
            if cv2.waitKey(1) & 0xFF == ord('q'):
                break

    finally:
        print("Landing...")
        drone(Landing() >> FlyingStateChanged(state="landed", _timeout=10)).wait()
        cap.release()
        cv2.destroyAllWindows()
        pdraw.close()
        drone.disconnect()
        pdraw.wait(PdrawState.Closed, timeout=5)
        pdraw.destroy()
        print("Cleanup complete.")

if __name__ == "__main__":
    main(sys.argv[1:])
